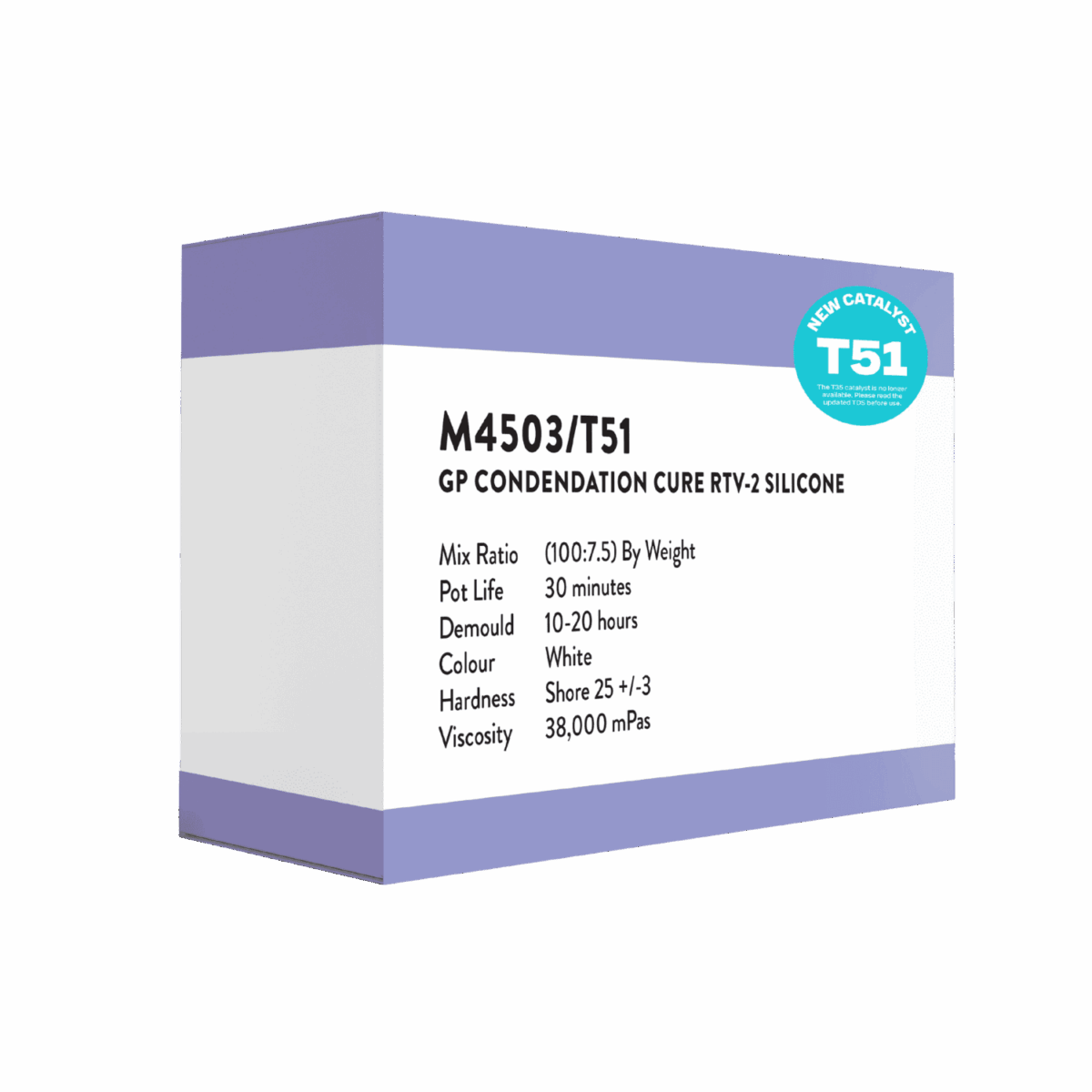

ELASTOSIL® M4503 & T51 Silicone Rubber (Wacker RTV-2 Condensation Cure)
ELASTOSIL® M4503 is a high-performance condensation cure RTV-2 silicone rubber, widely regarded as a standout product in the Wacker range. It offers excellent mechanical strength, durability, and resistance to casting resins, making it ideal for detailed mould making applications.
This system is particularly well suited for reproducing models with pronounced undercuts, delivering reliable flexibility and tear resistance. Moulds produced with M4503 perform exceptionally well when casting materials such as polyester resin, wax, and plaster.
Key Features
- Excellent flow for accurate detail reproduction
- Low Shore A hardness (~25) for flexible moulds
- High tear strength for durability and longevity
- Outstanding extensibility and elasticity
- Long-term stability of cured mechanical properties
- High resistance to casting resins, especially polyester systems
- Can be thickened with Thixotropic C to create a brushable system
Applications
ELASTOSIL® M4503 is recommended for a wide range of mould making applications, including:
- General purpose moulding
- Large-scale moulds
- Resin casting (polyester, polyurethane)
- Plaster and wax casting
- Models with deep undercuts and complex geometry
Technical Specifications
- Type: Condensation Cure RTV-2 Silicone Elastomer
- Hardness: Shore A 25 ± 3
- Viscosity: Approx. 38,000 cps
- Pot Life (Work Time): ~30 minutes
- Demould Time: 10–20 hours (depending on conditions)
Processing Notes
M4503 is a pourable, two-component silicone system that cures at room temperature. For vertical surfaces or brush-on applications, it can be modified using Thixotropic C to achieve the desired consistency.
